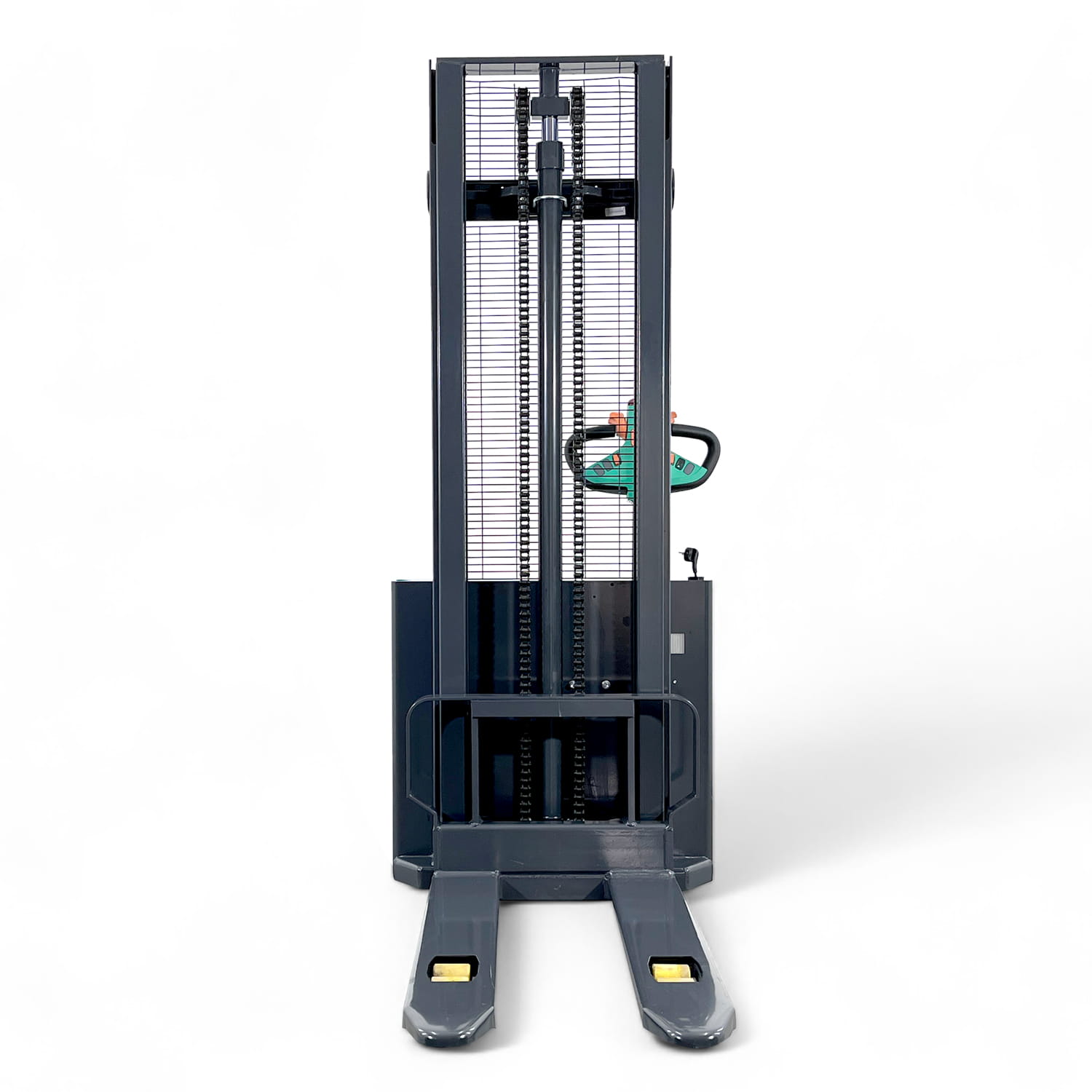

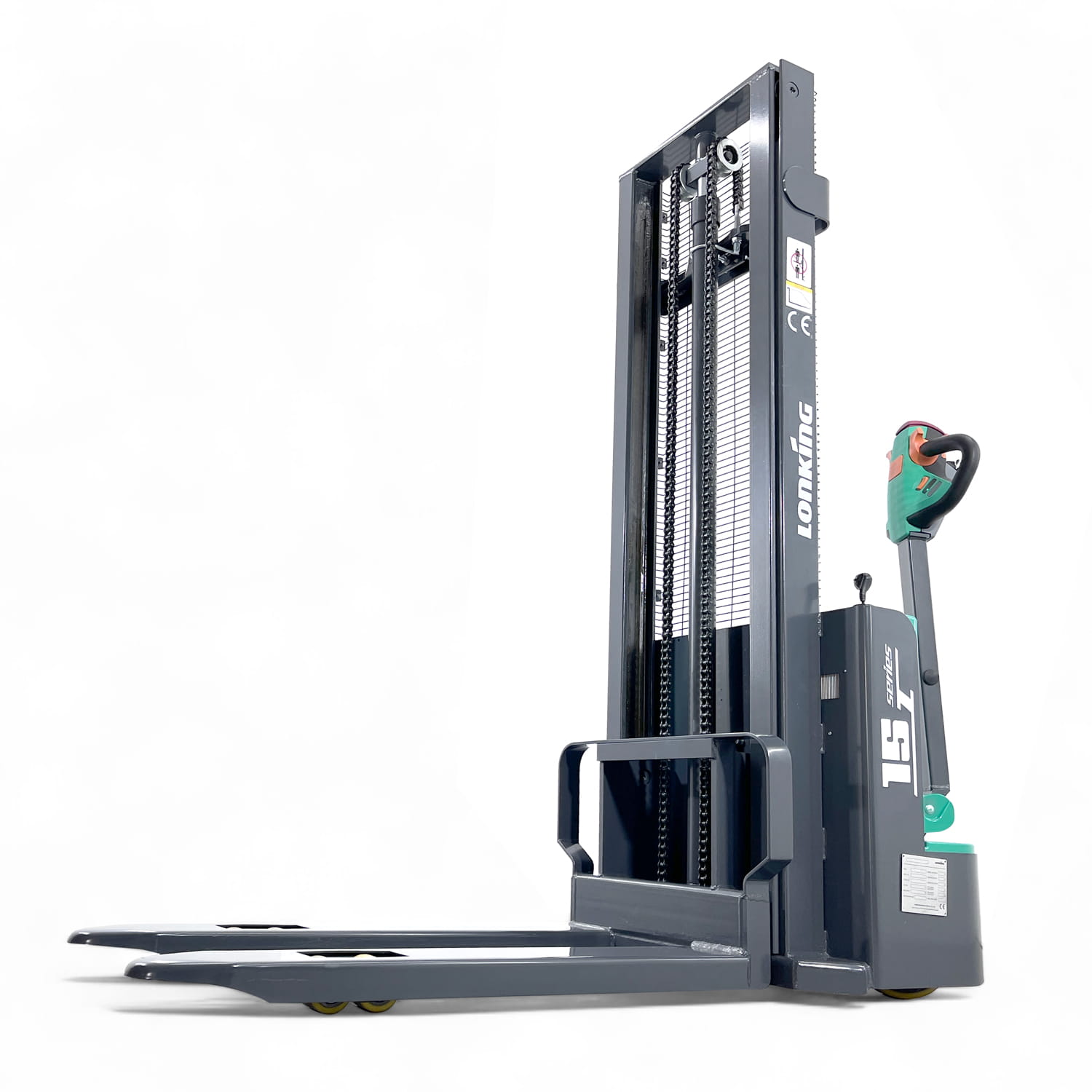

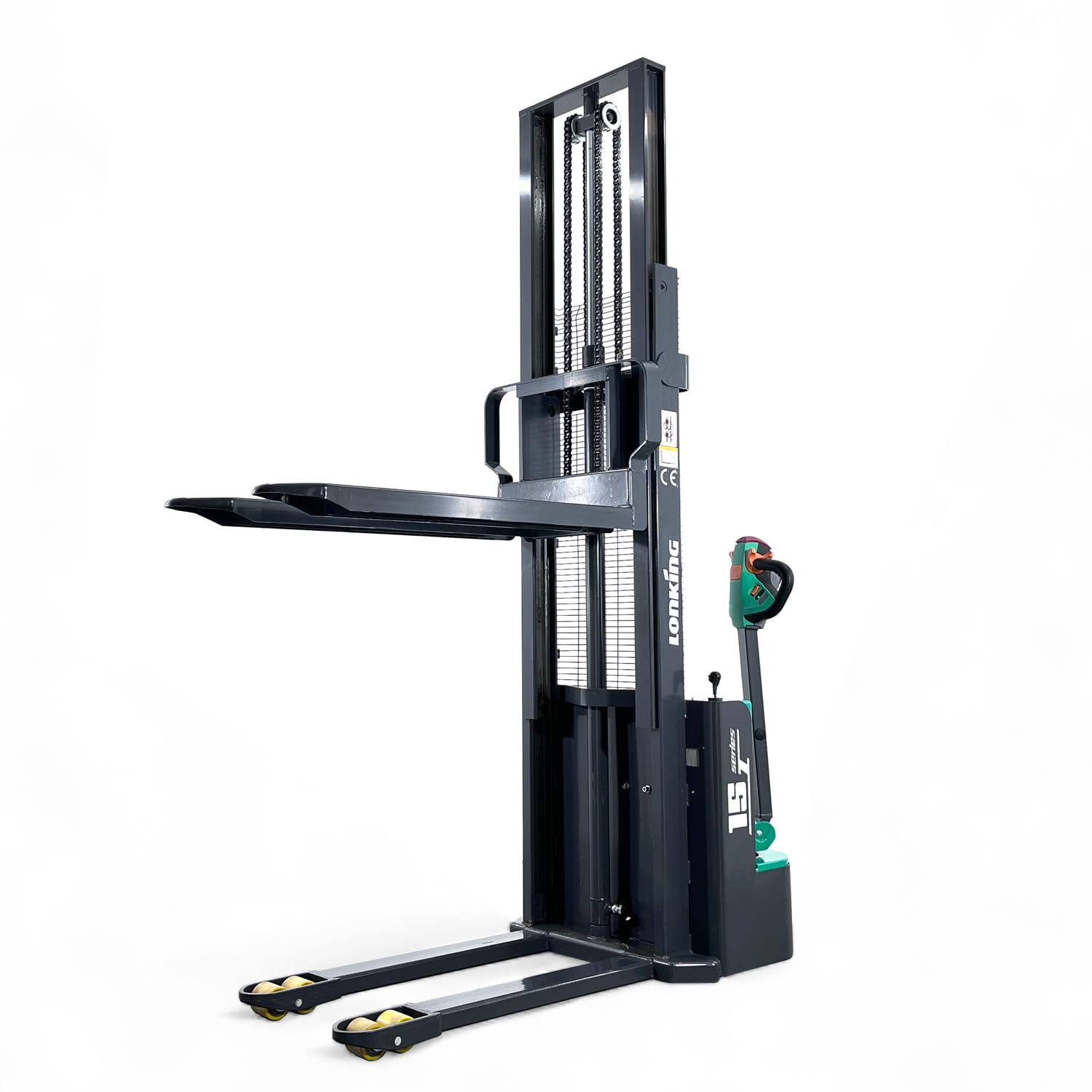

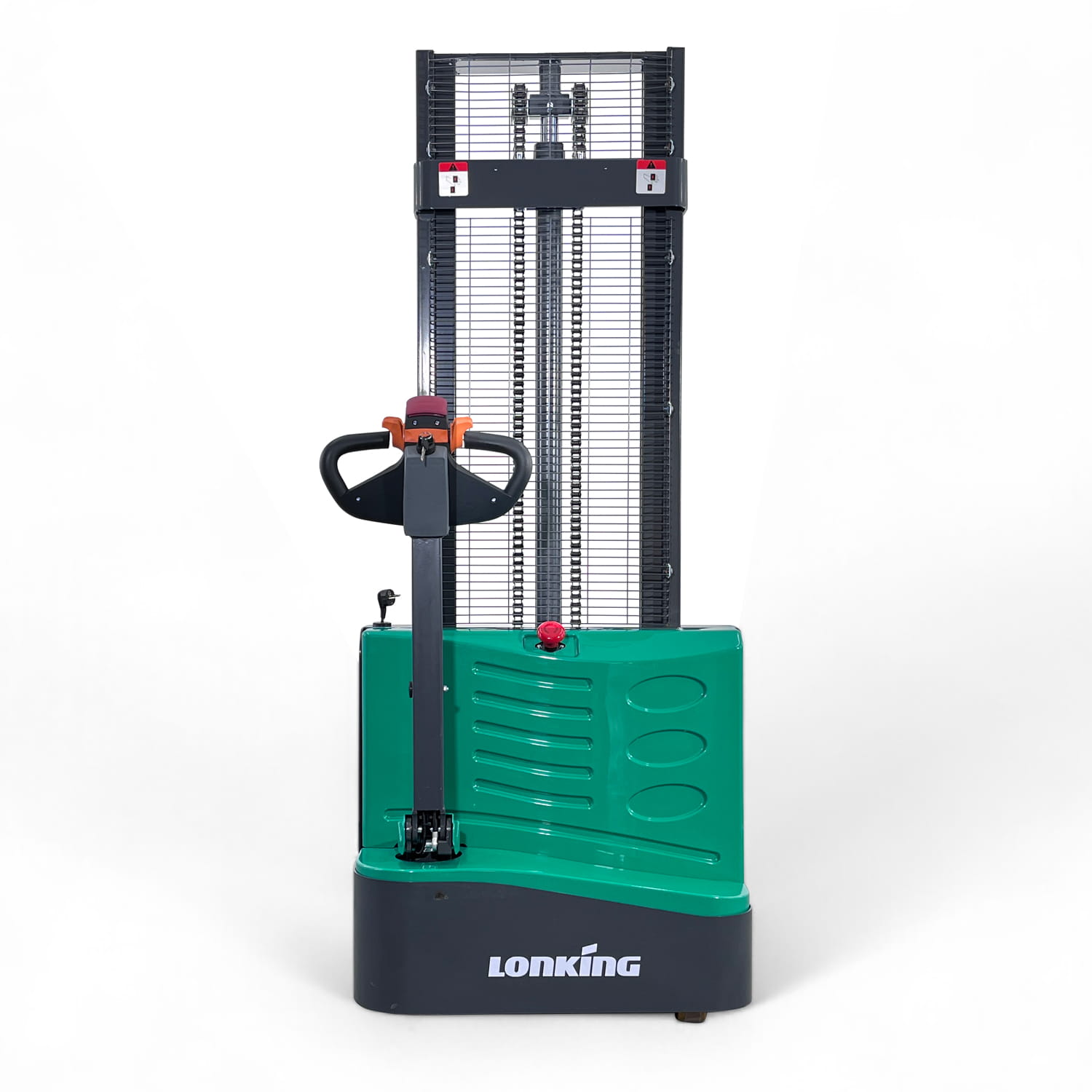

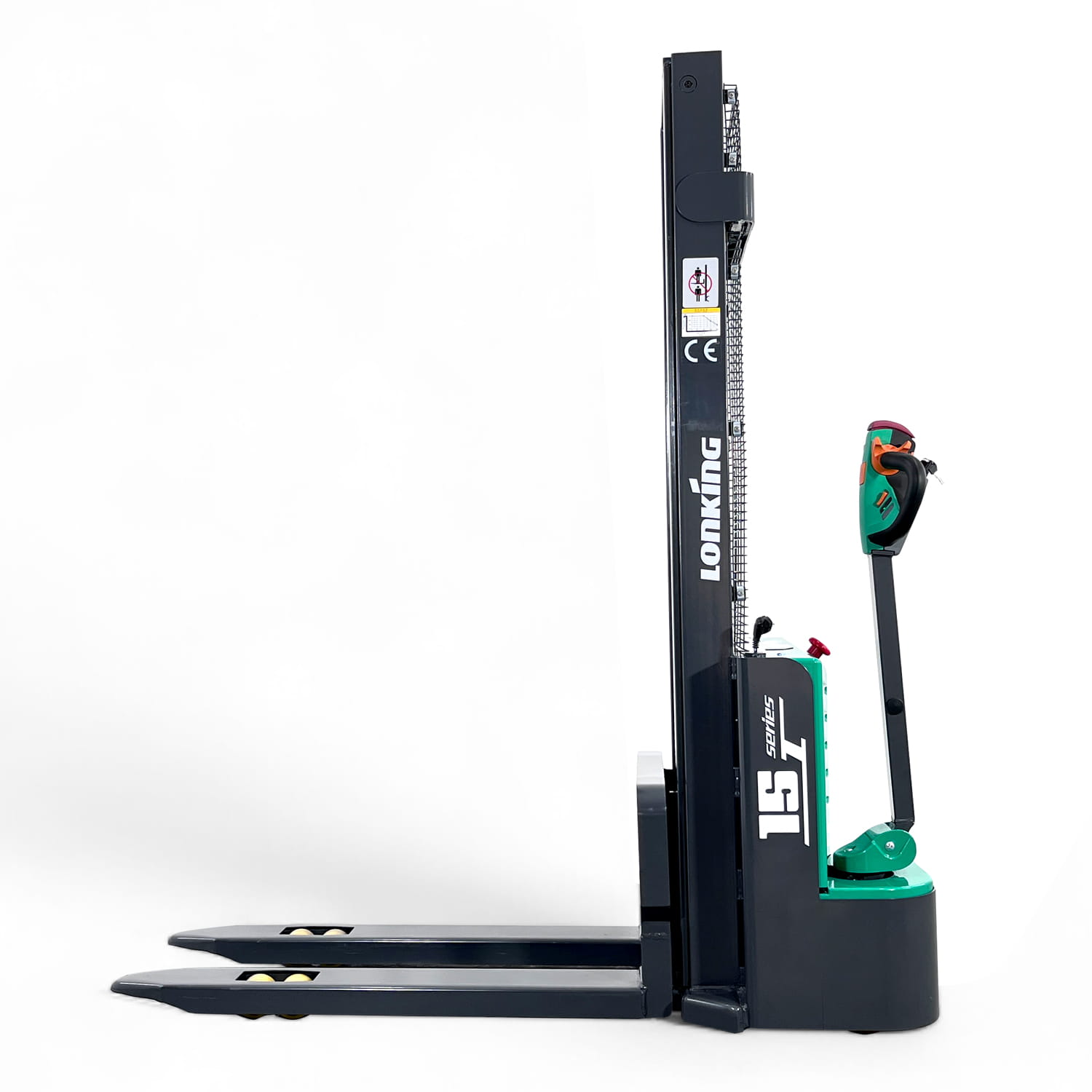

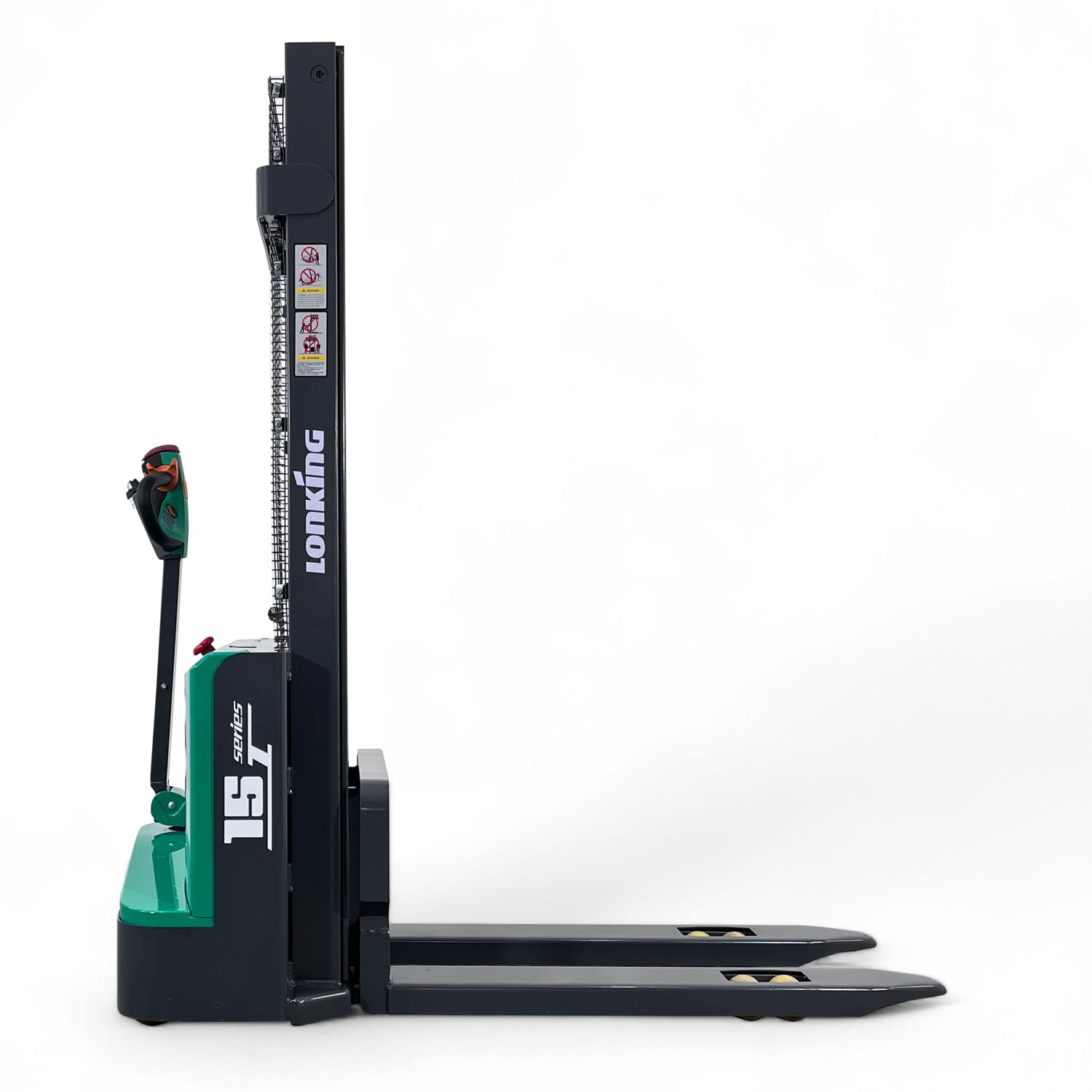

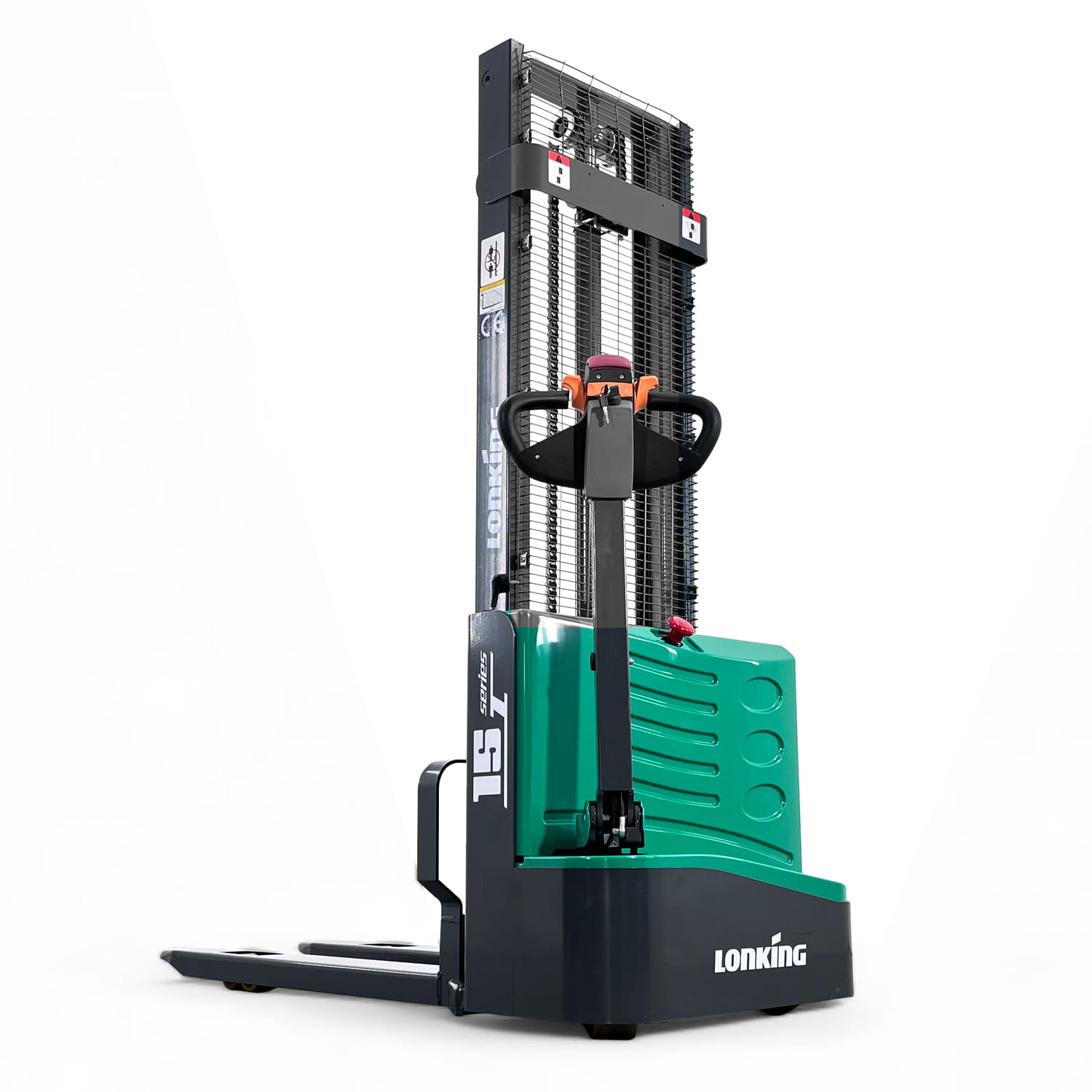

Electric pallet truck with mast CL1530JB (1500 kg) (1)

The CL1530JB electric stacker is a versatile tool designed for efficient load handling in warehouses, distribution centers, and production lines. Built for compact spaces, this model combines power and precision, enabling smooth transportation and lifting of goods.

Key features:

• Operator platform: The absence of an operator platform makes this stacker more compact and easier to maneuver in narrow aisles.
• Load capacity: A maximum load capacity of 1500 kg ensures safe handling of various goods.
• Load capacity at maximum height: At a maximum lifting height of 3000 mm, the stacker can lift up to 1000 kg, making it ideal for handling medium-weight loads at heights.
• Center of gravity: An optimal center of gravity at 600 mm guarantees stability and safety during operations.
• Mast type: Duplex mast enables efficient lifting while maintaining full visibility during operations.
• Mast construction height: 2060 mm, allowing efficient operation in low-ceiling spaces.
• Motors: A 2.2 kW lifting motor and a 0.75 kW driving motor ensure reliability and energy efficiency.
• Fork length: Forks measuring 1150 mm are perfectly suited for standard pallets.
• Compact dimensions: An overall width of 795 mm and a total length of 1740 mm make it an excellent solution for compact spaces.
• Turning radius: 1342 mm provides exceptional maneuverability in narrow warehouse aisles.
• Aisle width: Required aisle widths for 1000x1200 mm pallets are 2074 mm, and for 800x1200 mm pallets, 2040 mm, optimizing space management.

• Wheels: A drive wheel of ⌀ 210x70 mm, front rollers ⌀ 80x70 mm, and support wheels ⌀ 115x55 mm ensure stability and smooth movement.
• Battery: Equipped with a 24/100 V/Ah lead-acid battery, providing sufficient power for daily operations.
• Weight: Total weight with the battery is 495 kg, making the stacker stable yet easy to operate.

The CL1530JB stacker is the ideal choice for businesses needing a reliable tool for compact spaces, where precision and efficiency matter most. Its robust construction and advanced technology ensure long service life and low operating costs.
