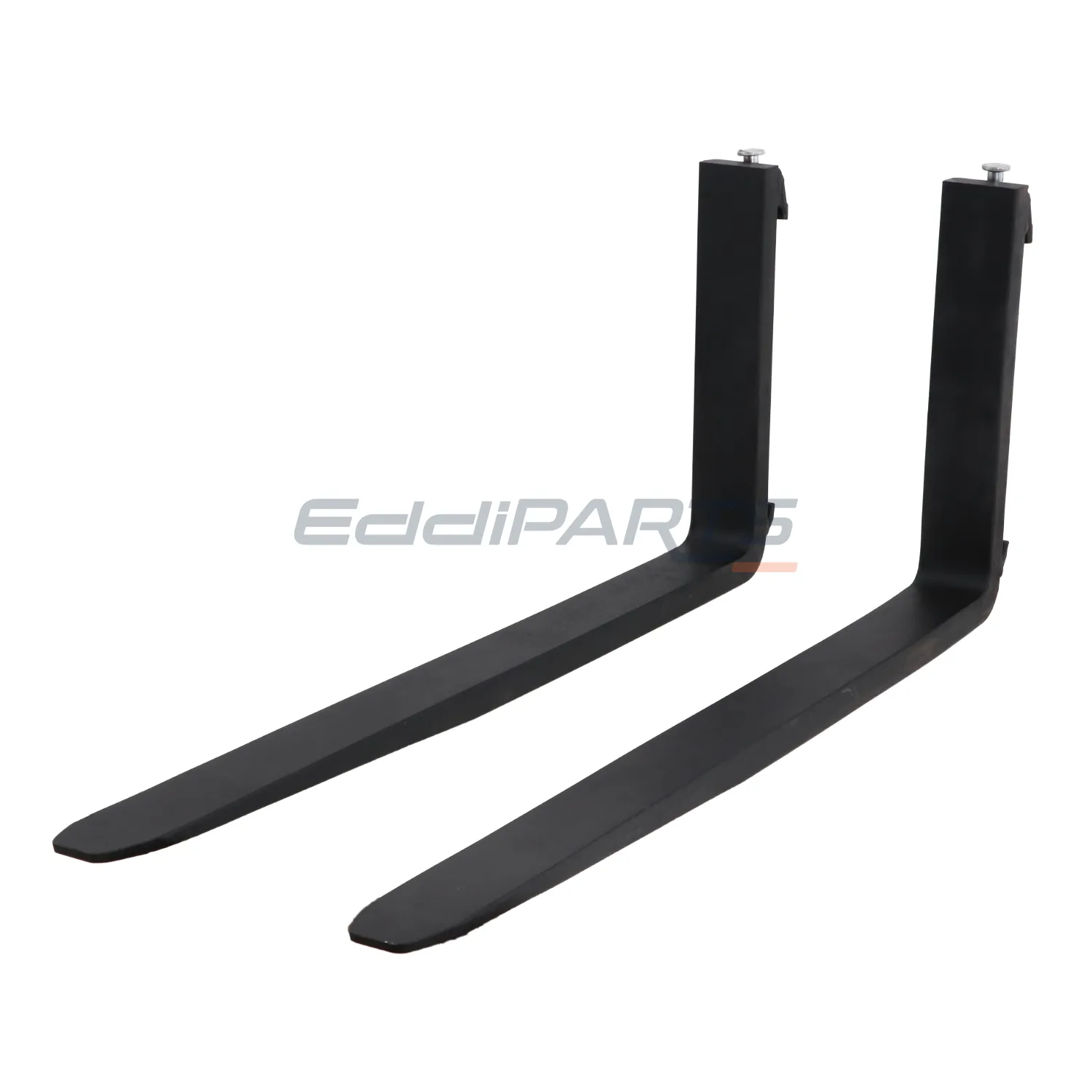

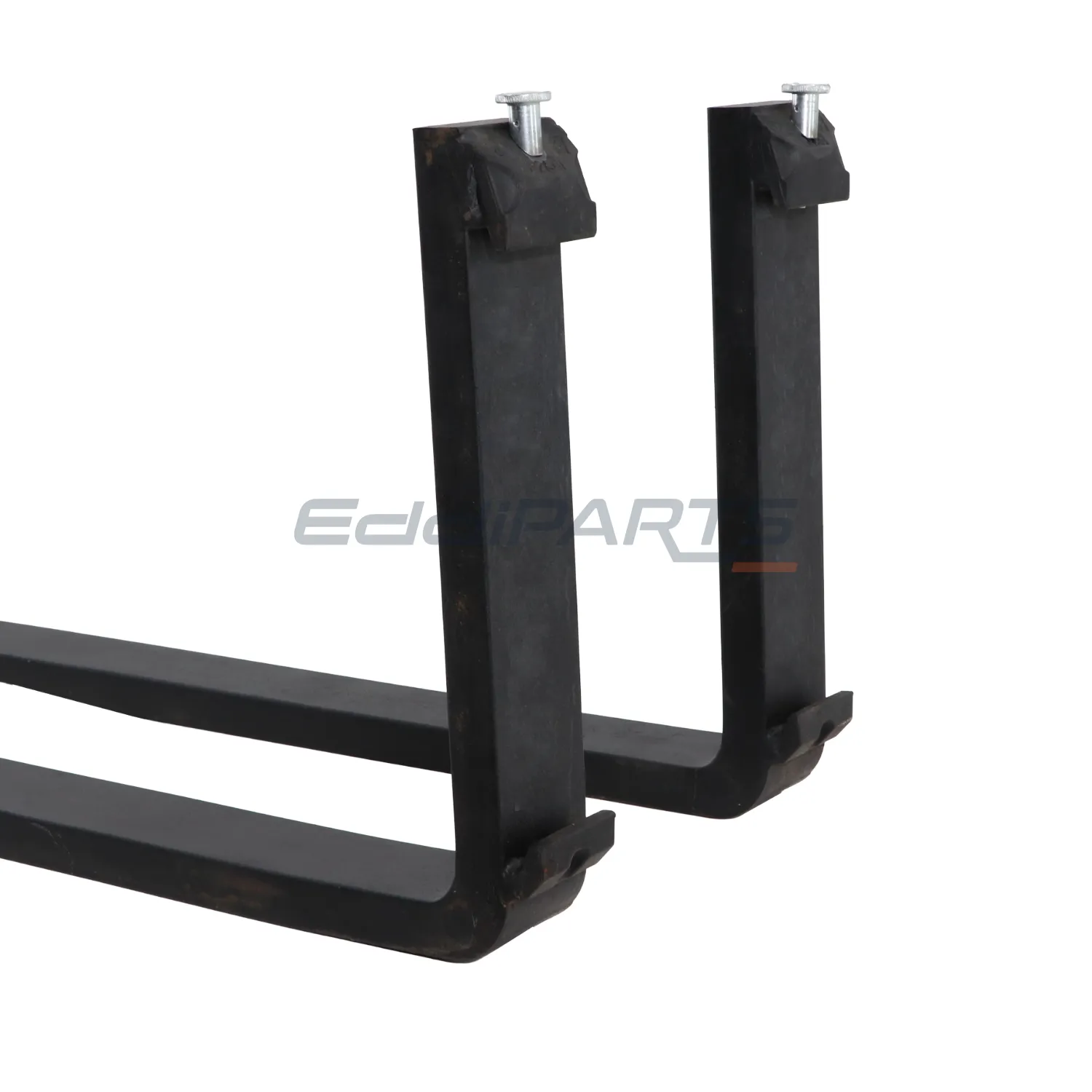

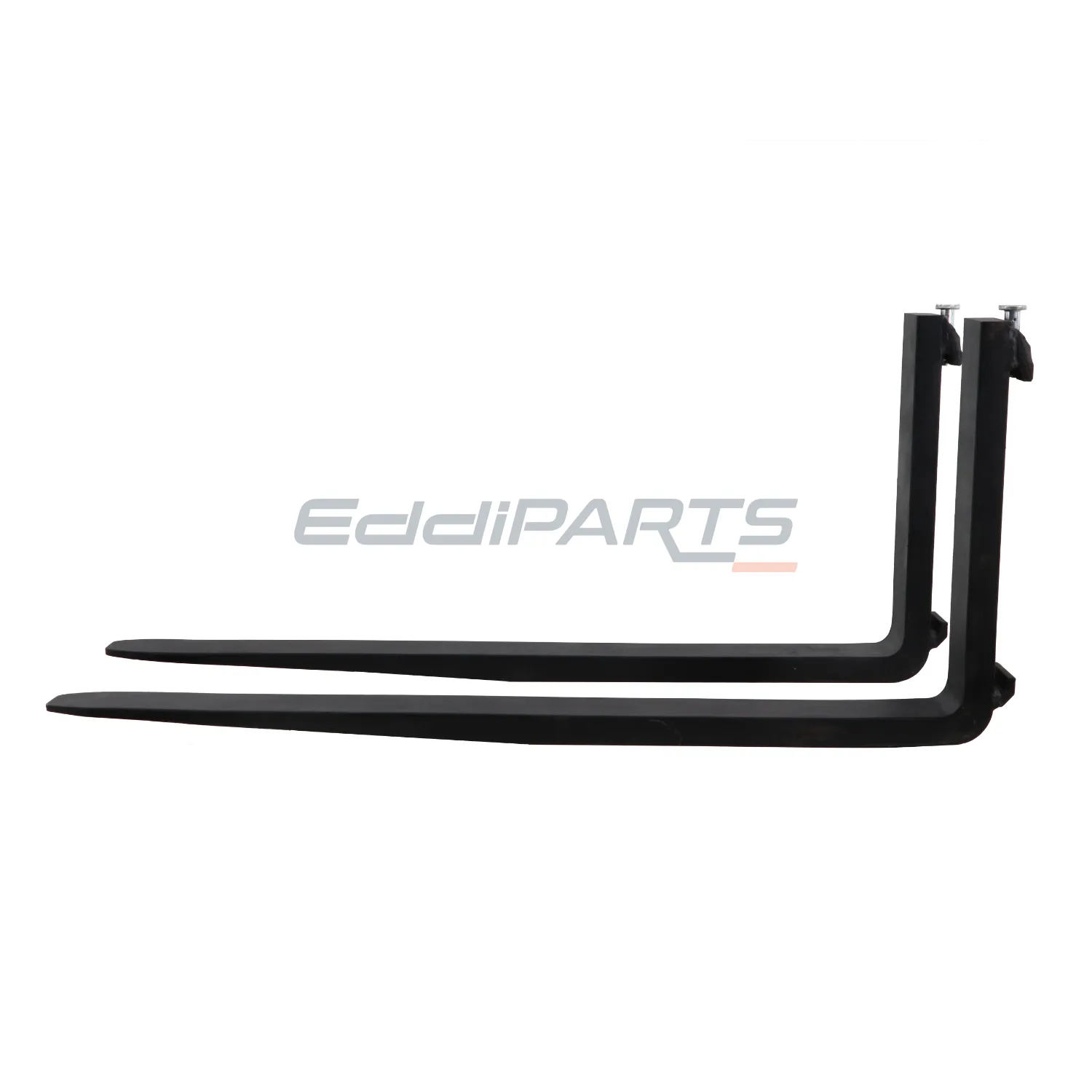

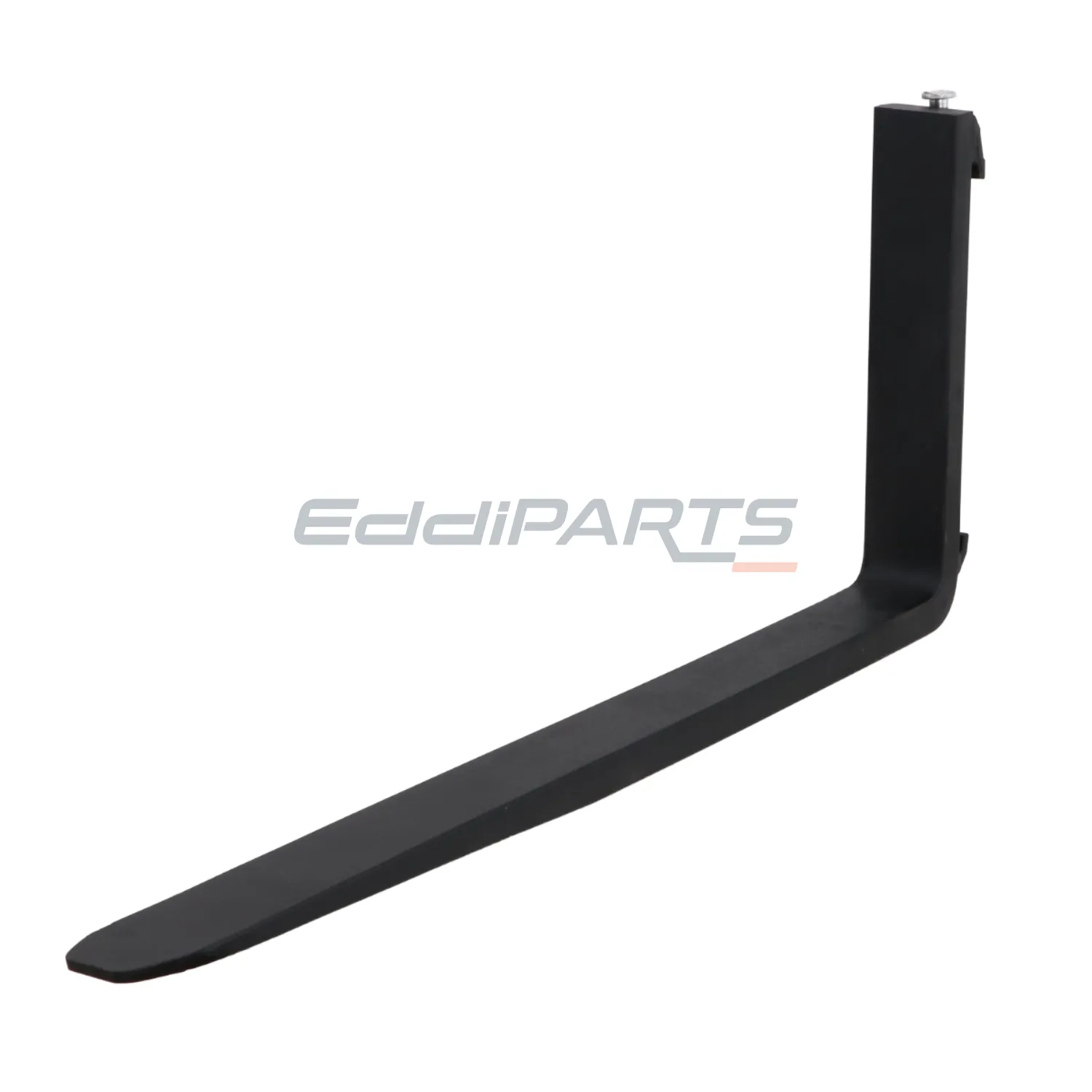

Fork 1200x125x50, Class 3A
Ochrona Kupującego Trusted Shops
product unavailable
add to wish list
Description
Lifting fork designed for installation on ISO 2328 / FEM Class 3A forklift carriages. Manufactured from solid forged steel and fully heat-treated to ensure high bending strength and resistance to material fatigue during intensive material handling operations. Features two pre-drilled holes in the blade to allow the attachment of specialized equipment or safety stops. Integrated top and bottom hooks with a locking pin ensure secure positioning on the carriage plate.
Technical Specification:
-
Part Type: Forklift fork (hook-on / FEM-type fork)
-
Width: 125 mm
-
Thickness: 50 mm
-
Usable Length: 1200 mm
-
Additional Features: 2 drilled holes in blade (at 500 mm and 600 mm from fork back)
-
Mounting Class: FEM 3A
-
Capacity per Pair: 4300 kg (safety factor SF=3)
-
Load Centre: 500 mm
-
Quality: High-grade replacement matching OEM specification and ISO 2328 / ISO 2330 standards
-
Applications: Forklift trucks equipped with FEM Class 3A carriage
Technical data
| Total height | 50 mm |
| Overall width | 125 mm |
| Overall length | 1200 mm |
| Quality of parts | OEM - oryginal |
| Weight | 75 kg |
