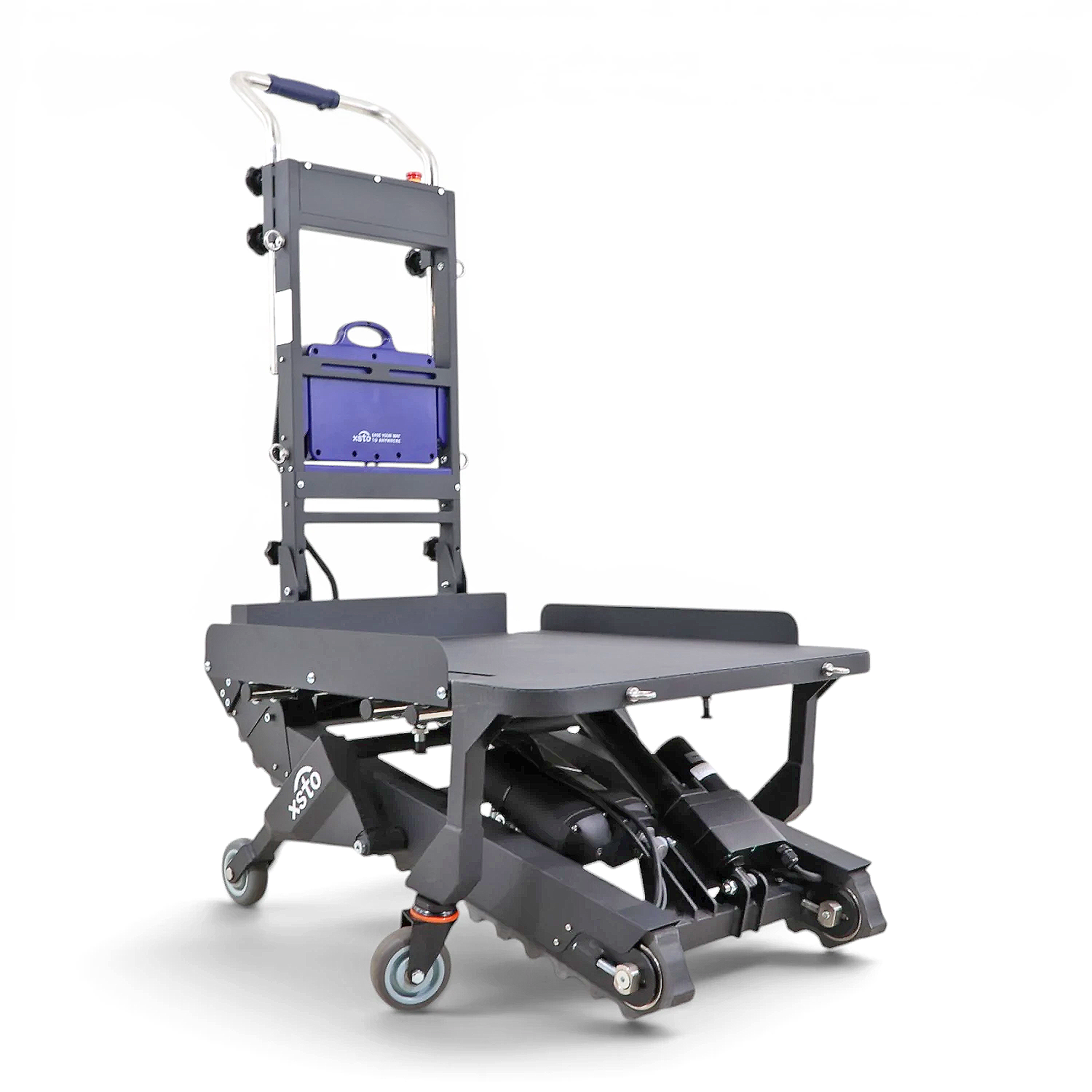

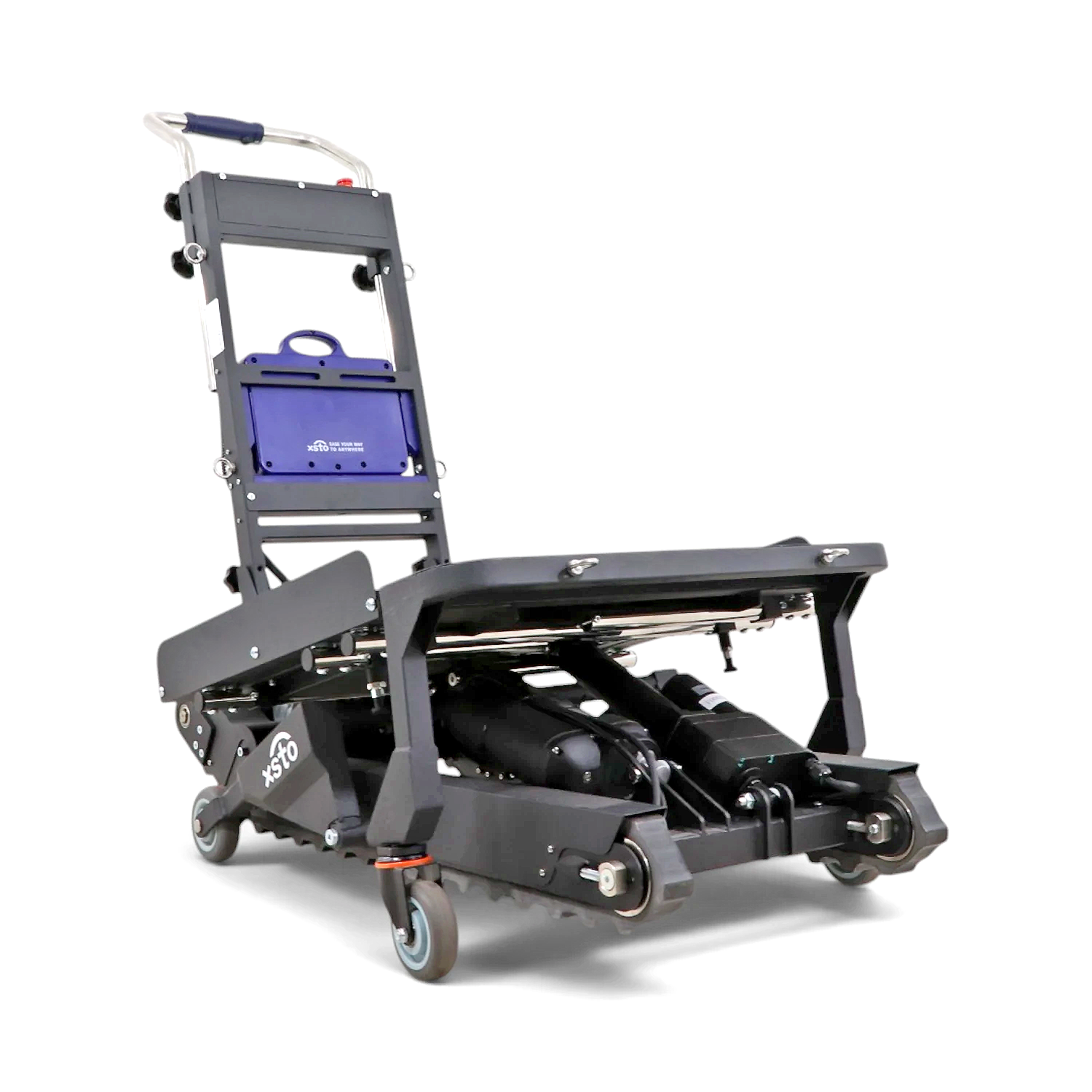

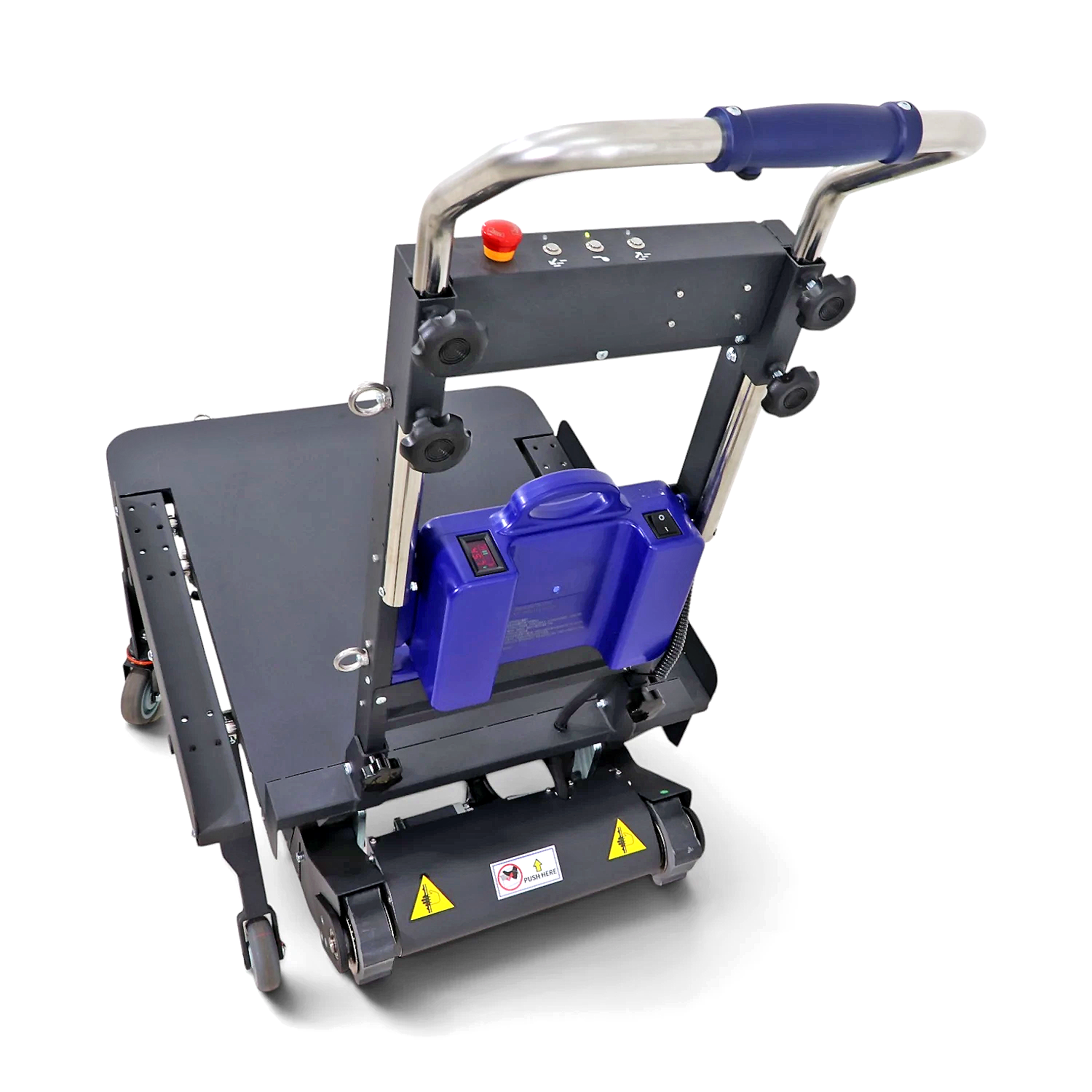

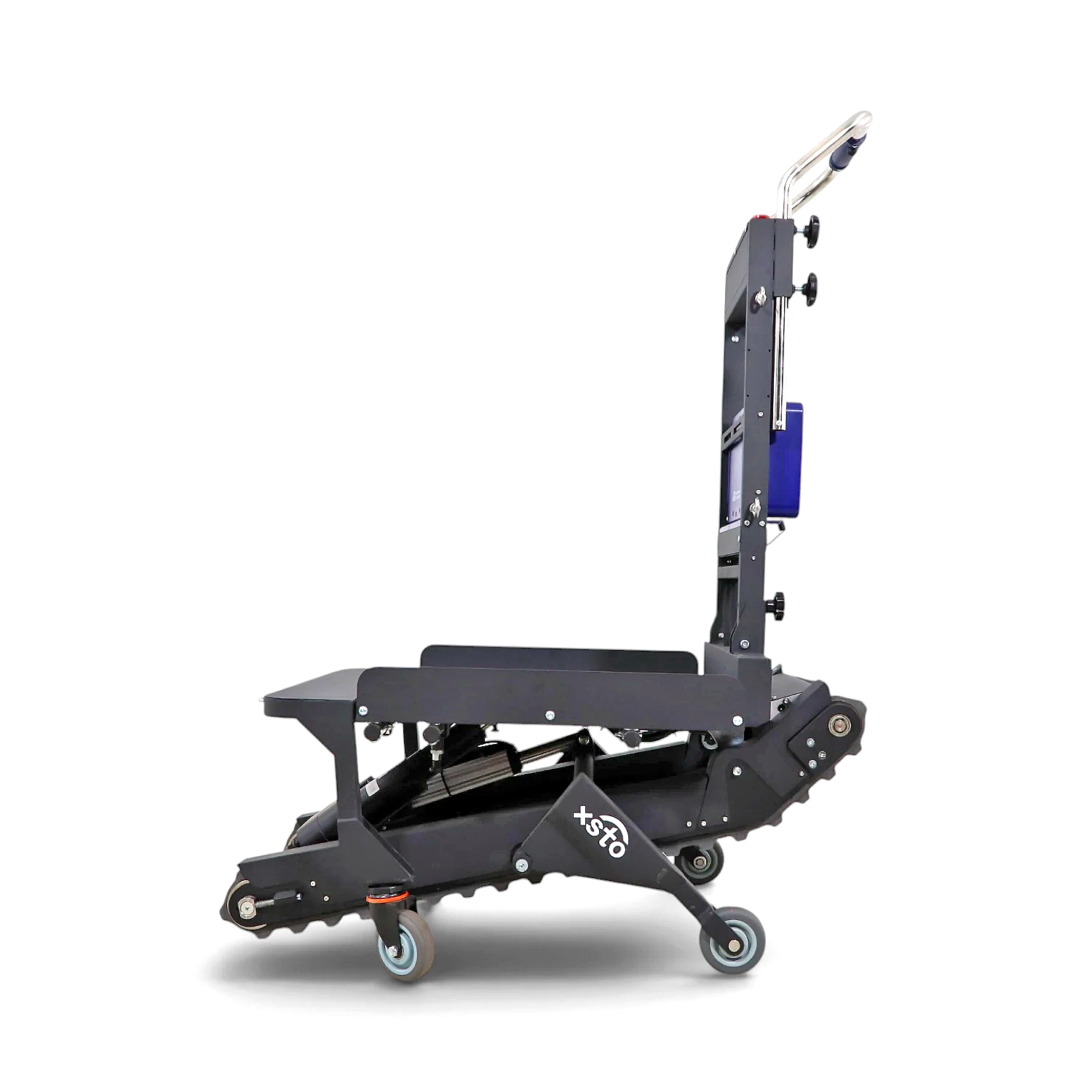

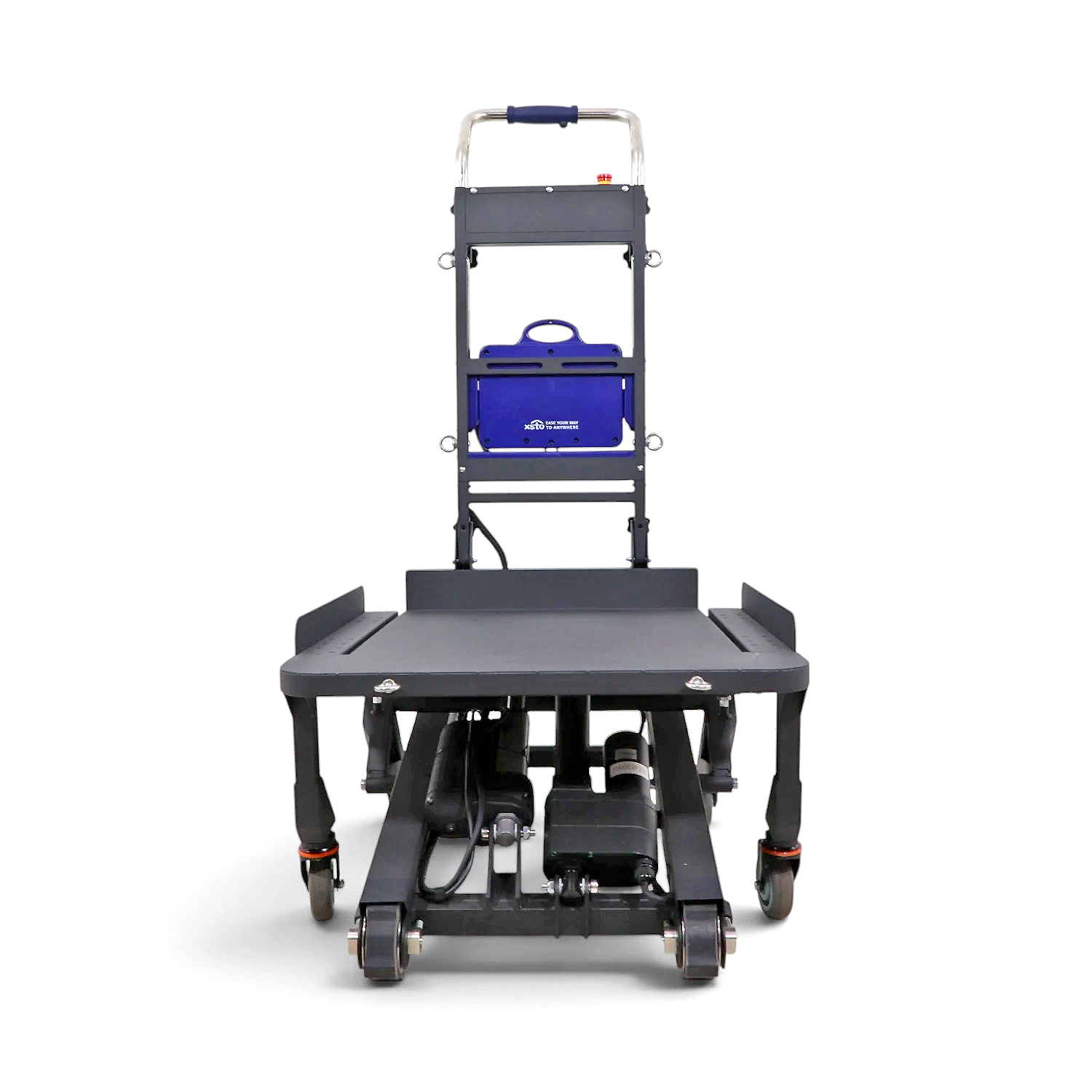

Gunstig CT250 tracked stair climber with self-levelling platform
Ochrona Kupującego Trusted Shops
product unavailable
add to wish list
Description
PRODUCT DESCRIPTION
Forget about the gruelling and dangerous task of carrying bulky loads with teams of several people. The XSTO CT250S is a no-compromise solution for professionals, combining a powerful tracked drive with a load capacity of up to 250 kg with two unique systems: automatic platform self-levelling and lateral frame extension. Designed to enable safe, single-operator transport of the most challenging loads: heat pumps, vending machines, heavy control cabinets, central heating boilers, safes and catering equipment.
KEY FEATURES AND BENEFITS
-
Intelligent automatic levelling: An integrated electric actuator with a thrust of 2000 N continuously analyses the angle of the stairs and automatically levels the loading platform. The goods being transported remain in a secure, upright position at all times. This prevents the centre of gravity from shifting, drastically reduces the operator’s effort and protects sensitive equipment from tipping over.
-
XXL telescopic loading platform (side-sliding system): This model handles wide, oversized loads with ease. The unique side-sliding system allows the platform width to be smoothly extended from the base width of 706 mm up to 1110 mm (with a maximum single-sided extension of 202 mm), providing excellent support for wide crates and machinery.
-
Independent drive systems (Flat / Stairs mode): With a single switch, a linear actuator with a force of 5000 N changes the trolley’s geometry. On flat ground, you manoeuvre using the support wheels, and when you reach stairs, you instantly activate the tracks for vertical movement.
-

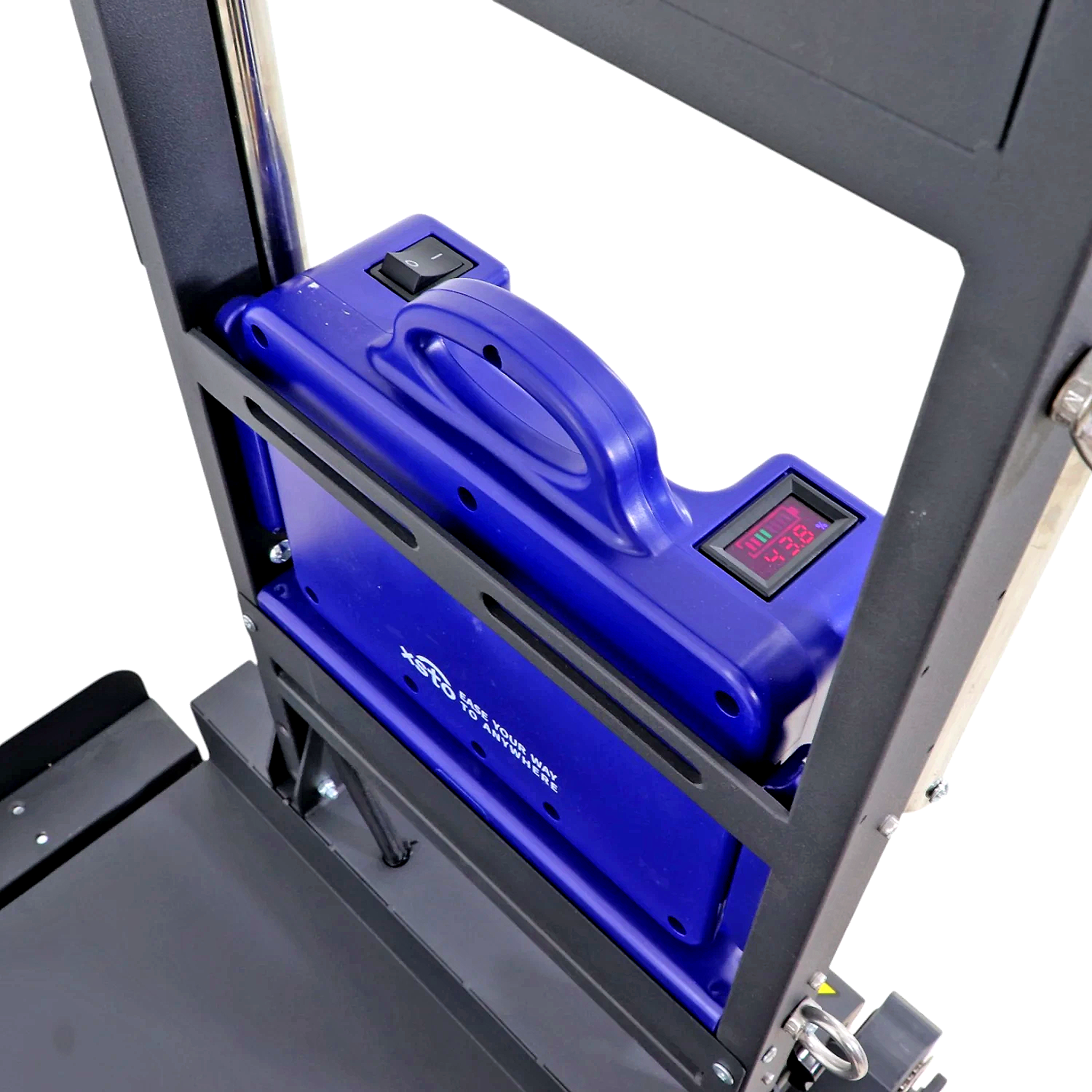

Next-generation power and performance: The powerful 500W 48V DC motor effortlessly climbs stairs at a speed of up to 43 steps per minute under full load. The lightweight, removable lithium battery (3.1 kg) guarantees an impressive range of up to 71 storeys on a single charge.
-
Maximum stair protection: Tracks made from a special rubber compound reinforced with steel cord guarantee perfect grip on the edges of steps (even on granite or tiles), whilst leaving no black marks and causing no scratches to the surface.
DETAILED TECHNICAL SPECIFICATIONS — MODEL CT250S
-
Maximum working load: 250 kg
-
Working width of the platform: Infinitely adjustable from 706 mm to 1110 mm
-
Basic overall dimensions: 1075 mm (length) × 706 mm (base width) × 1246 mm (height)
-
Trolley kerb weight: 75 kg (battery: 3.1 kg)
-
Operating speed (under full load):
-
Ascent rate: 43 degrees per minute
-
Going down: 53 steps per minute
-
-
Drive unit: 48V DC motor, rated power 500W
-
Actuator configuration: Wheel actuator (Flat mode) 5000N | Platform levelling actuator 2000N
-
Power supply: Lithium-ion battery 48V / 7.5Ah
-
Maximum stair tread height: 210 mm
-
Permissible staircase pitch: from 25° to 33°
-
Minimum manoeuvring space (stair landing): 1300 mm × 1300 mm
-
System protection rating: IP33
