Dual Pilot-Operated Check Valve VBPDE c/RUB 3/8" with Mechanical Lock
Ochrona Kupującego Trusted Shops
product unavailable
add to wish list
Description

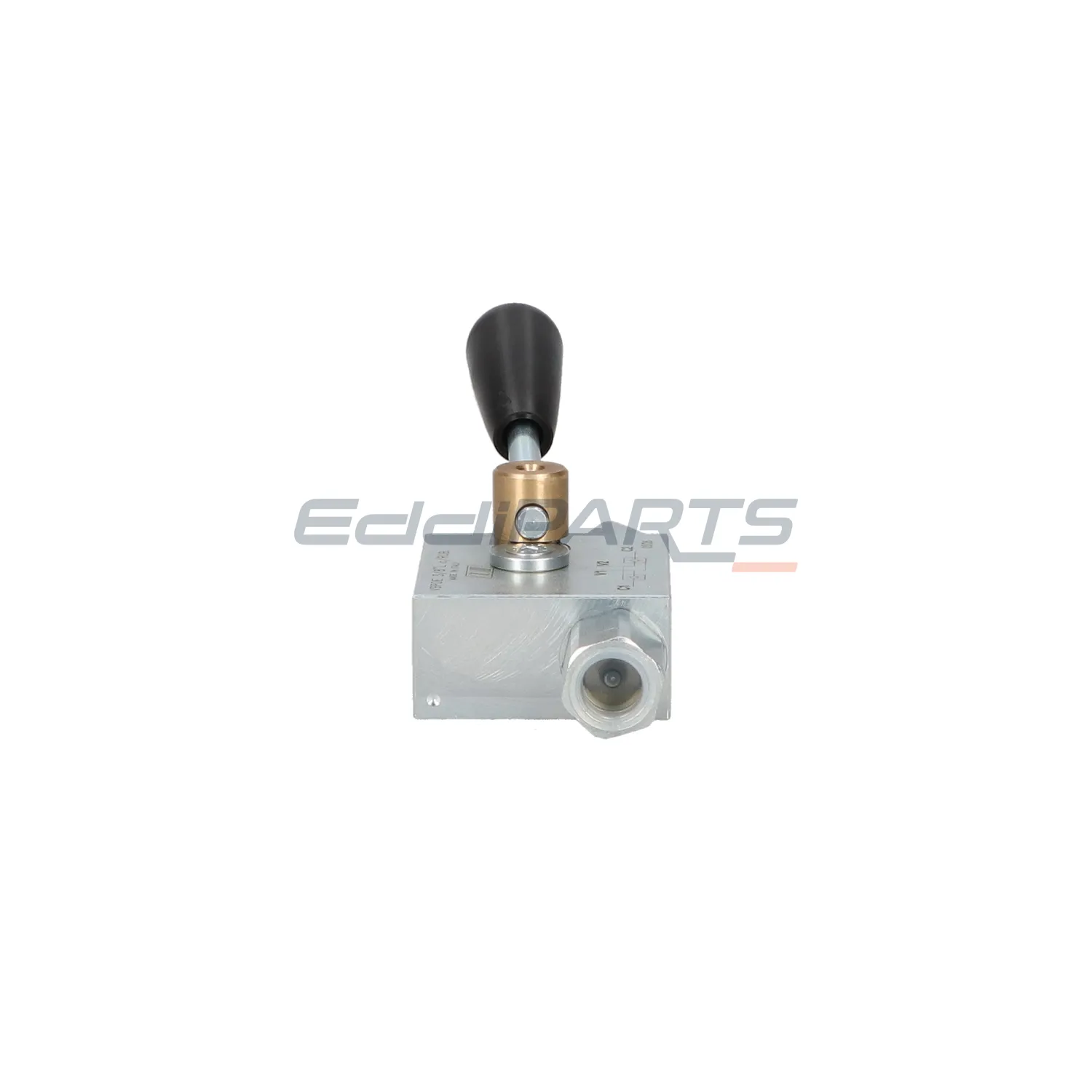

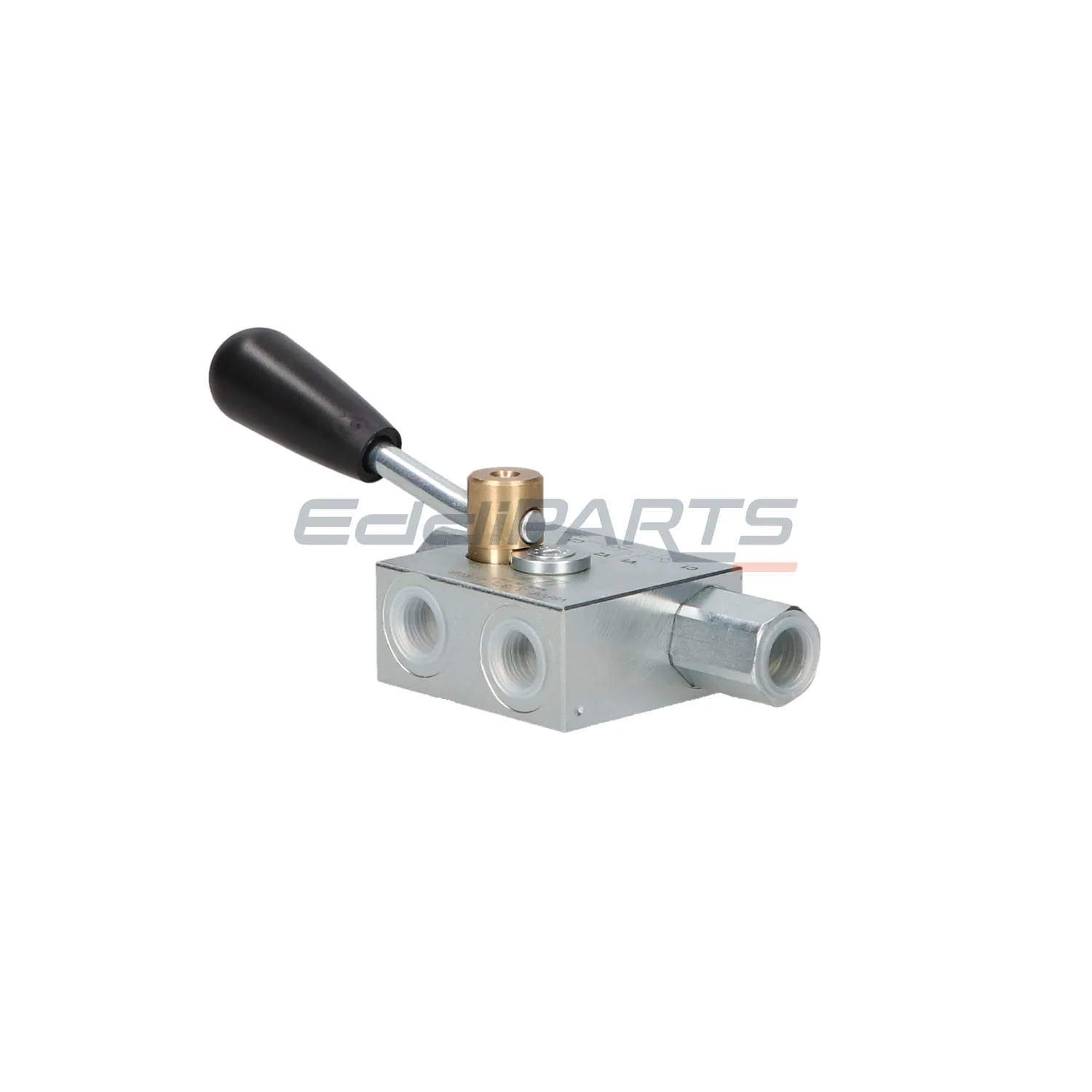

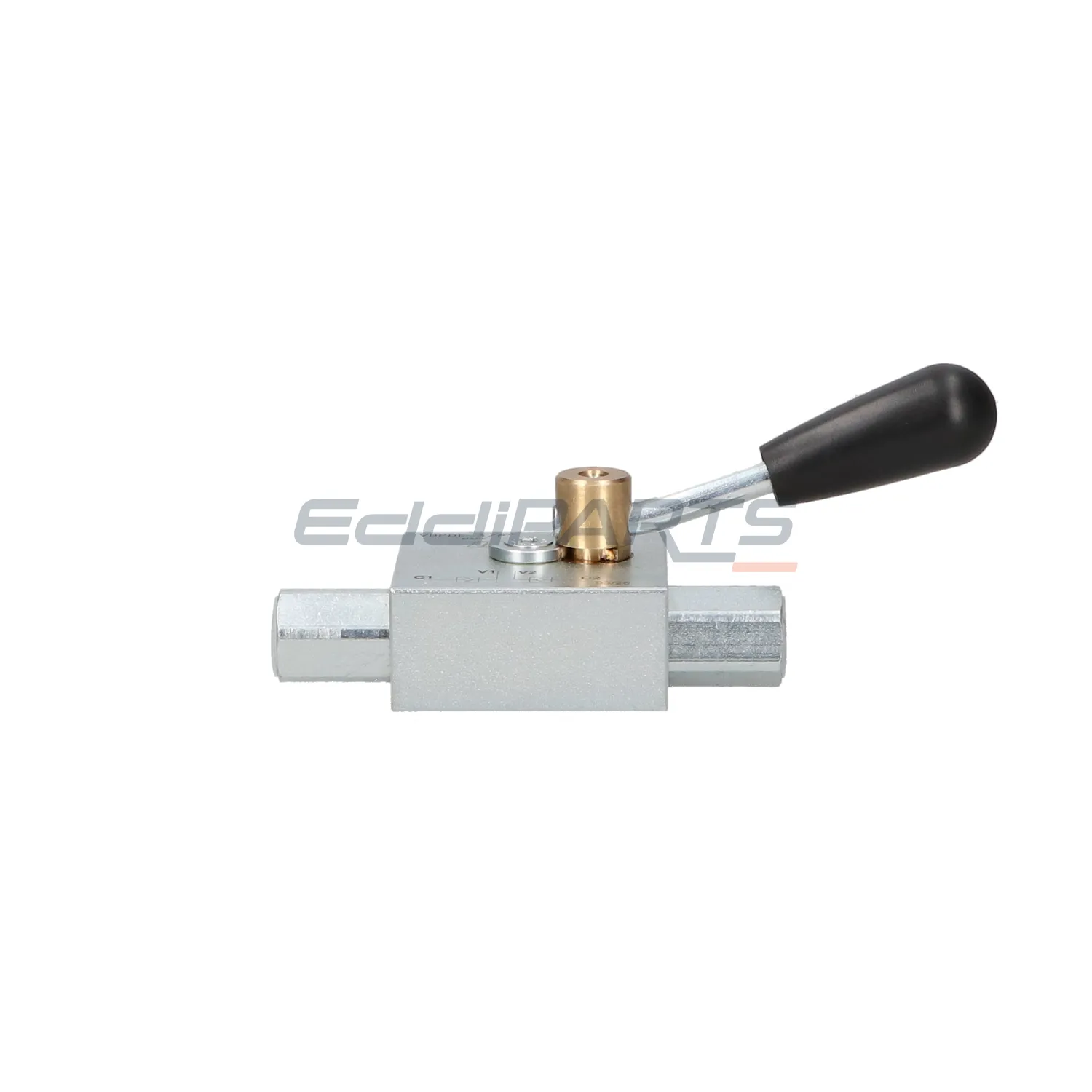

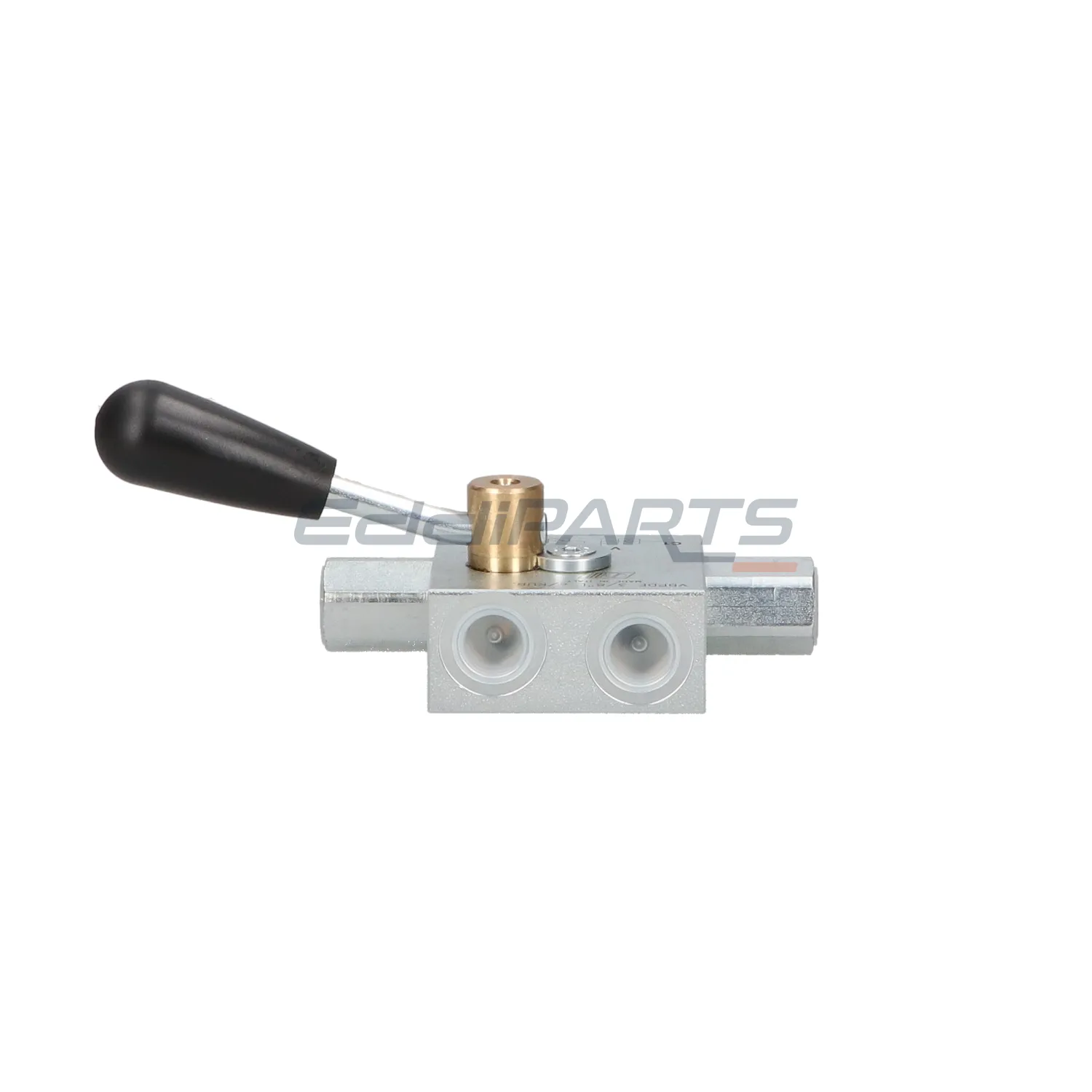

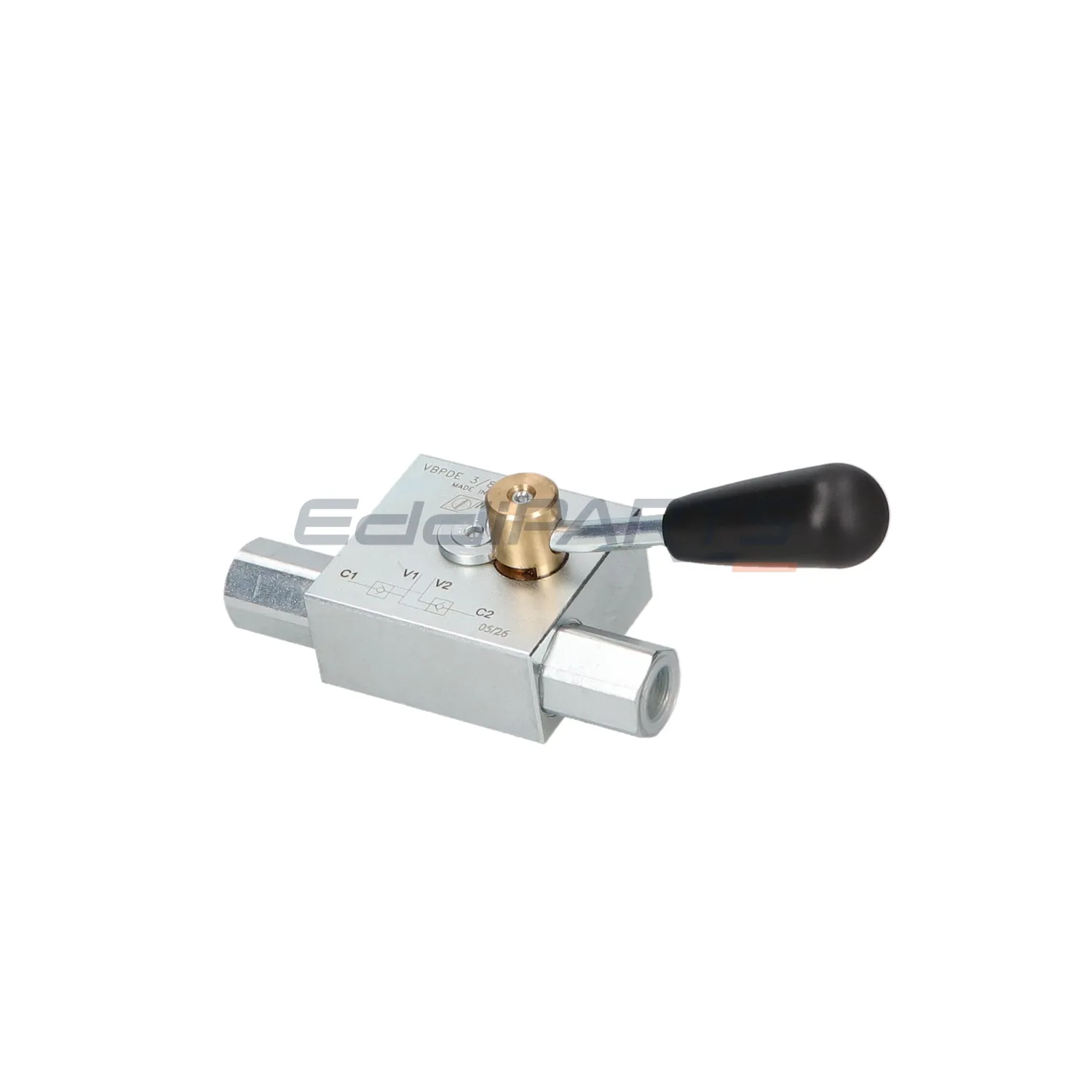

Dual Pilot-Operated Check Valve VBPDE c/RUB 3/8" with Mechanical Lock (1.35.17.012)
High-performance dual pilot-operated check valve (hydraulic lock) model VBPDE c/RUB 3/8" matching part number 1.35.17.012, designed for double-acting hydraulic cylinders. It automatically locks oil in both cylinder chambers to maintain position under load in case of hose burst or pressure drop. This specialized unit includes an integrated mechanical lock for maximum safety during maintenance and parking.
Key Features & Benefits:
- Dual Chamber Protection: Holds double-acting cylinders firmly in place until pilot pressure is applied to open the valve circuit.
- Mechanical Lock Feature: Provides secondary physical locking protection to prevent accidental load movement or drift.
- Heavy-Duty Construction: High-pressure steel body designed to handle pressure spikes, heavy vibration, and demanding industrial usage.
Compatibility & Application:
Designed for hydraulic circuits on material handling, construction, and agricultural equipment:
Forklifts (mast tilt cylinders, attachments), wheel loaders, hydraulic cranes, and aerial platforms utilizing G 3/8" port connections.

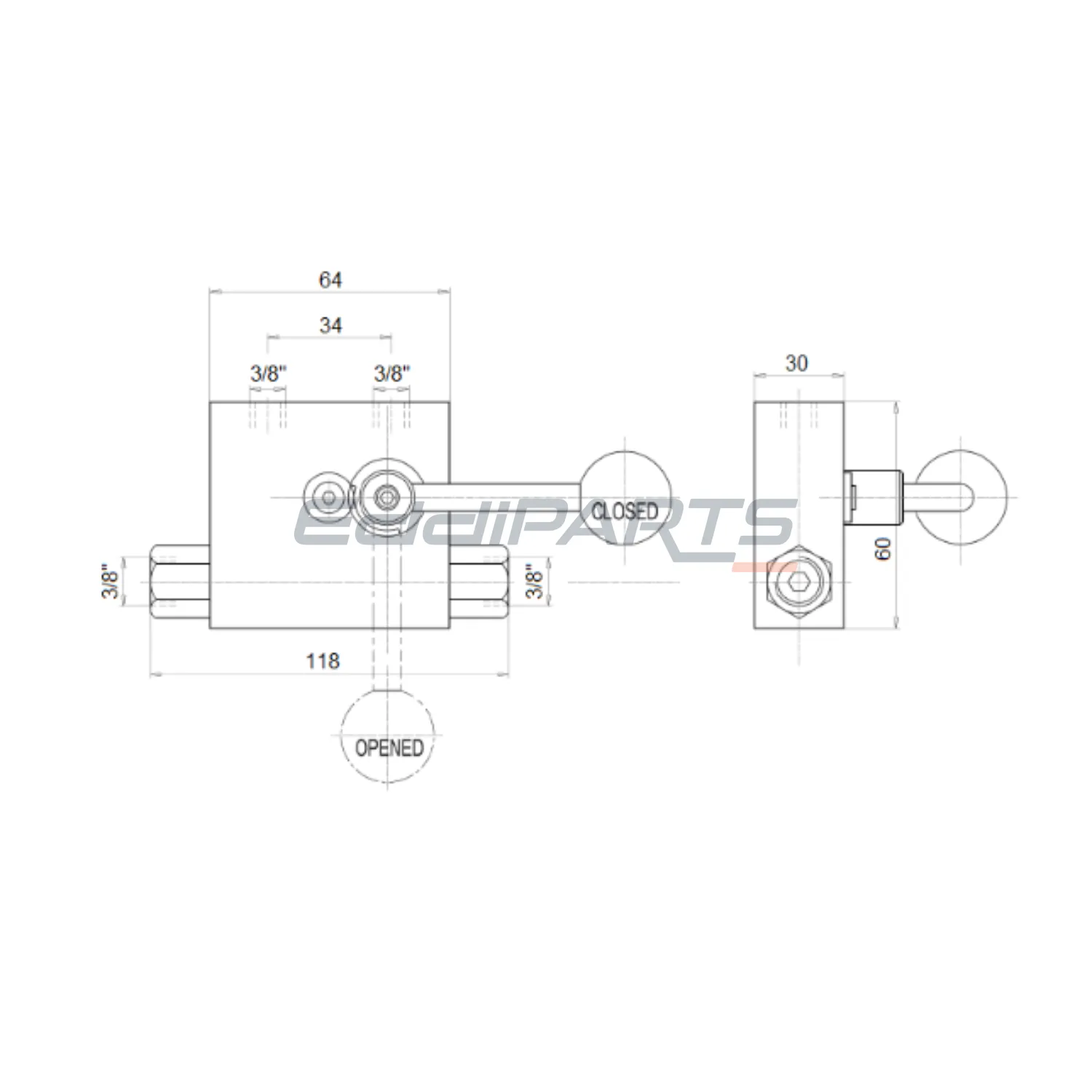

Technical Specifications:
- Part Number: 1.35.17.012
- Valve Type: VBPDE c/RUB (Dual Pilot Check Valve / Hydraulic Lock)
- Port Size: G 3/8" (BSP)
- Additional Feature: Integrated Mechanical Lock
- Application: Double-Acting Hydraulic Cylinders
